Description

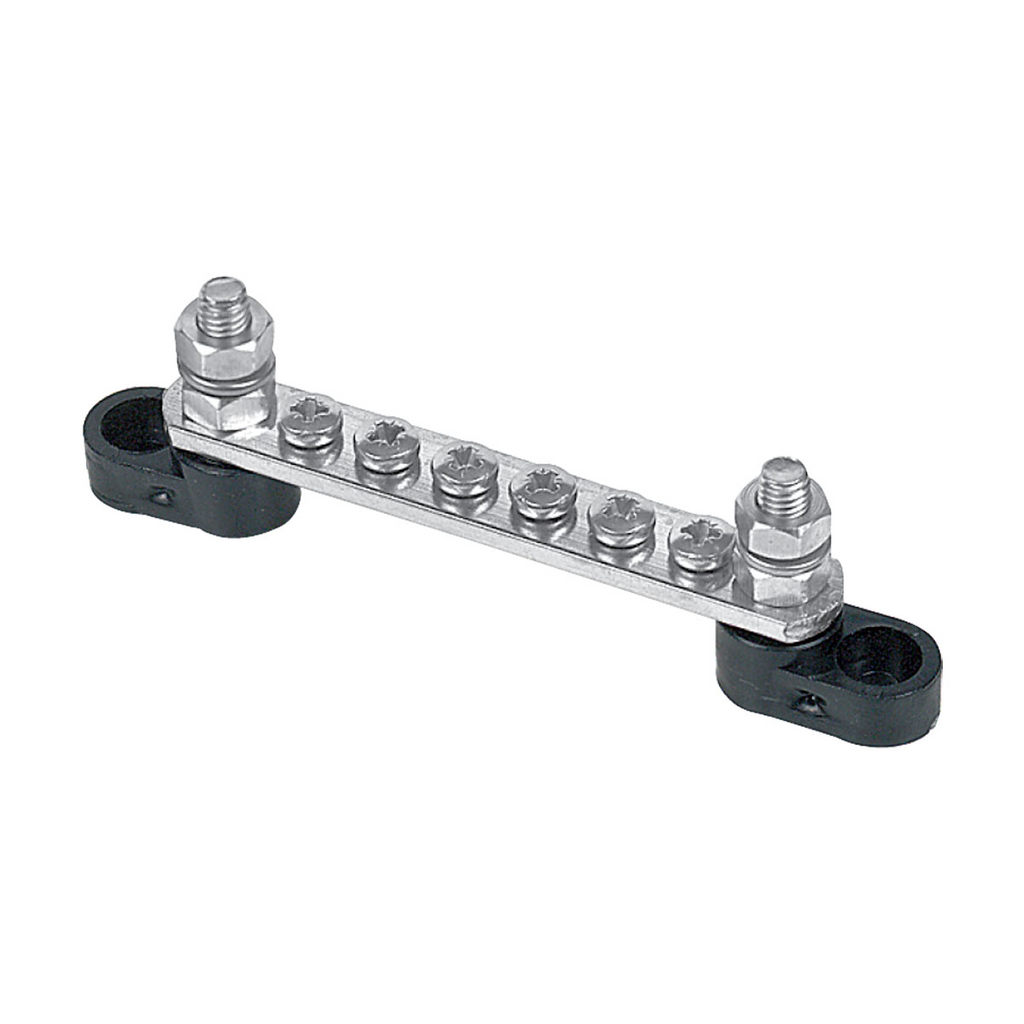

Tin plated brass busbars with insulated mounting bases. Mounting holes are recessed to avoid accidental shorts. Polarity colour coded covers are available to meet ABYC standards.
| BLA CODE | TAKE OFFS | BASE MM | HEIGHT MM | CURRENT RATING | OUTPUT SCREWS MM | INPUT STUDS MM |
|---|
| 113504 | 6 | 117 | 15 | 100 | 4 | 6 |
| 113506 | 12 | 177 | 15 | 100 | 4 | 6 |
| 113509 | 24 | 177 | 35 | 150 | 4 | 6 |
