Description

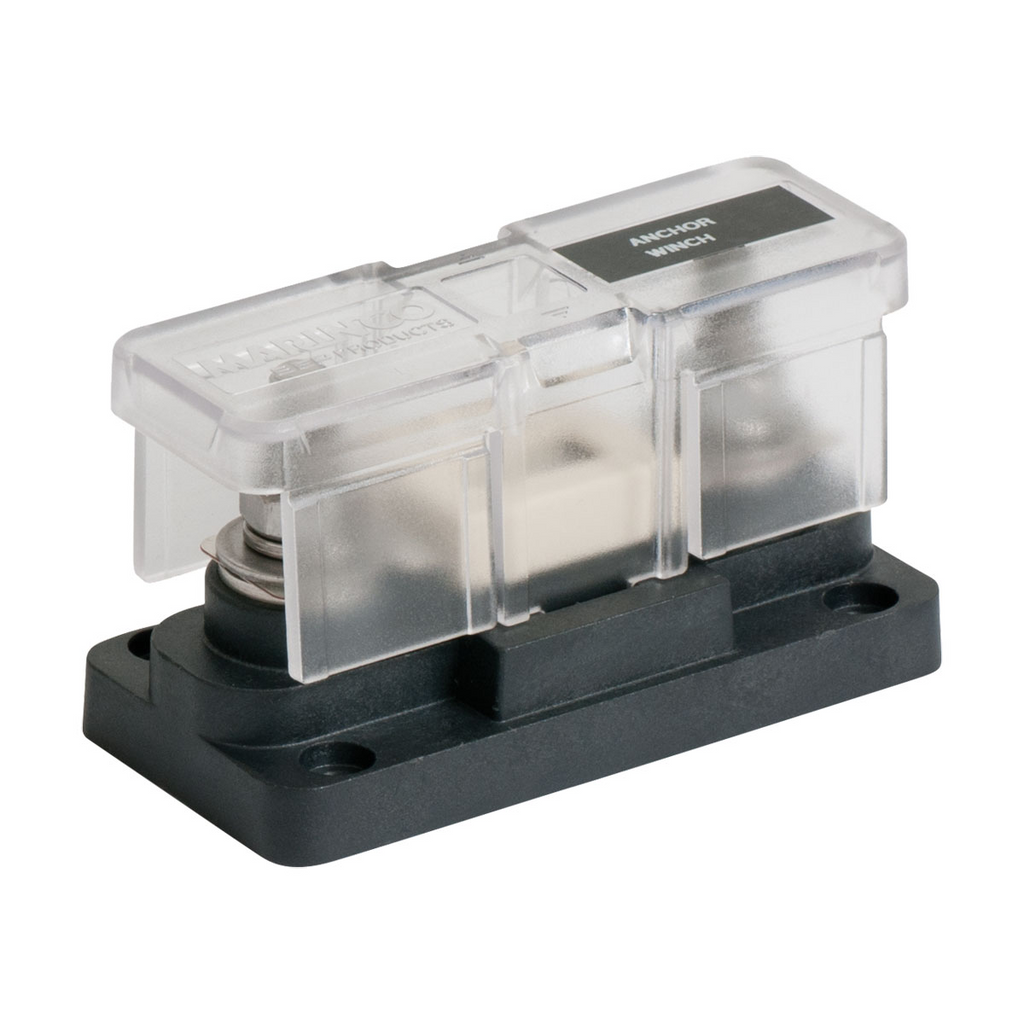

These ANL fuseholders offer unparalleled circuit protection choice for both the installer and end-user. The innovative Through-Panel fuseholder (114642) provides superior access for fuse inspection and replacement.
Small electrical loads are catered to with the compact 114640 unit while additional cable security and highest capacity is provided by the 114644, featuring additional studs for separate clamping of cables.
Specifications
Cable connection studs Shared 8mm (5/16") on 114642.
Fuse mounting studs 8mm (5/16")
Double washers allow any ANL fuse brand to be fitted
Fuse type ANL or ANN (fast blow)
Swinging fuse style allows changing fuse without removal of fastening nuts
50VDC (or determined by fuse fitted)
Tinned CDA102 copper conductors 114644
Tinned CDA260 high conductivity brass conductors 114642
| BLA CODE | DESCRIPTION | CABLE STUD MM | AMPERAGE | QTY | FOOTPRINT* |
|---|
| 114640P | Fuseholder, ANL | 8 | 35-300A | 1 | 1 x |
| 114640B10 | Fuseholder, ANL | 8 | 35-300A | 10 | 1 x |
| 114644P | Fuseholder, ANL with additional cable clamping studs | 10 | 35-750A | 1 | 1.5 x |
| 114644B10 | Fuseholder, ANL with additional cable clamping studs | 10 | 35-750A | 10 | 1.5 x |
| 114642P | ANL Through Panel | 10 | 35-500A | 1 | 1 x |
