Description

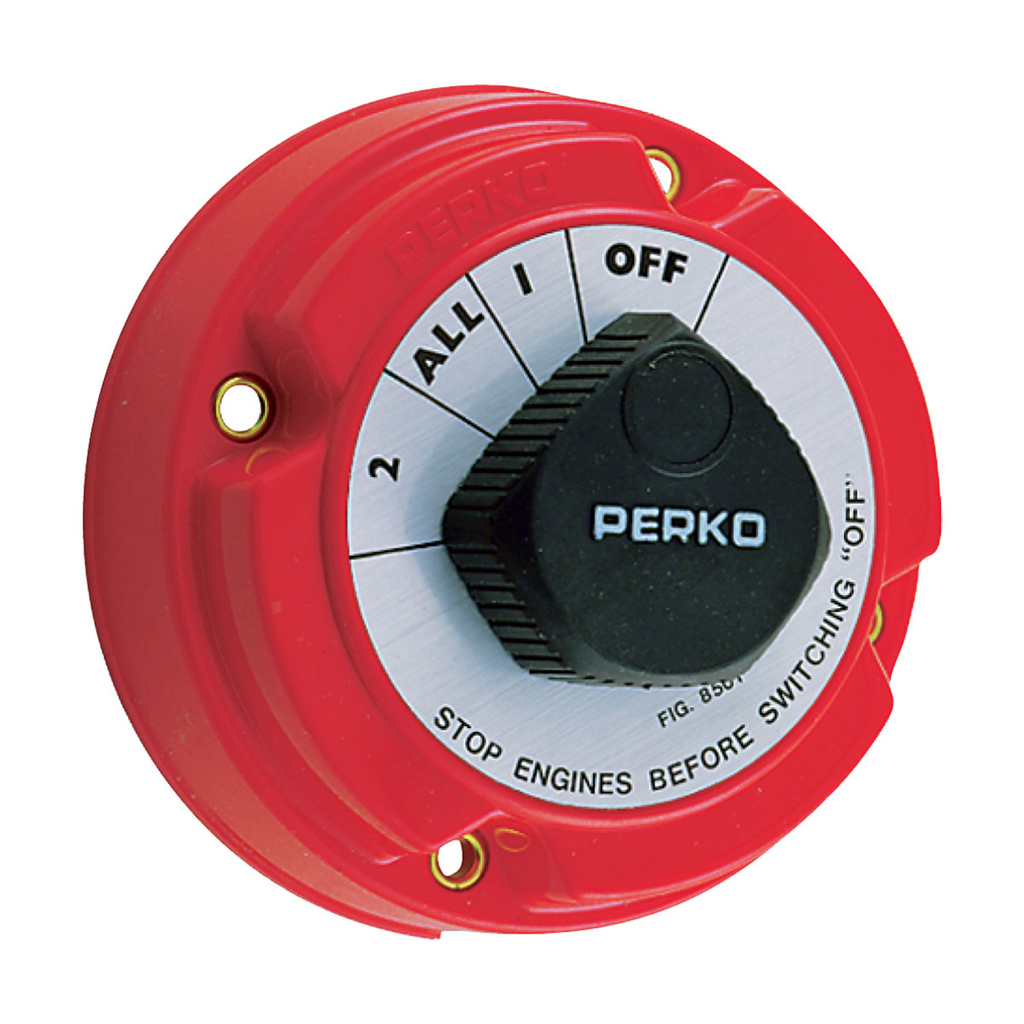

Four position isolation switches, off/1/all/2. Select between batteries for starting, charging, load or parallel both batteries. Surface mount. Also available with key lock for added security. Engines must be shut down before turning to 'off' position.
Specifications
Voltage 6-32V DC max
Continuous Rating 250 amps DC
Intermittent Rating 360 amps DC
| BLA CODE | KEY LOCK | BASE DIA. MM | HEIGHT MM | MOUNT SCREWS MM | TERMINAL STUD MM |
|---|
| 401101 | No | 134 | 67 | 5 r/h | 8 |

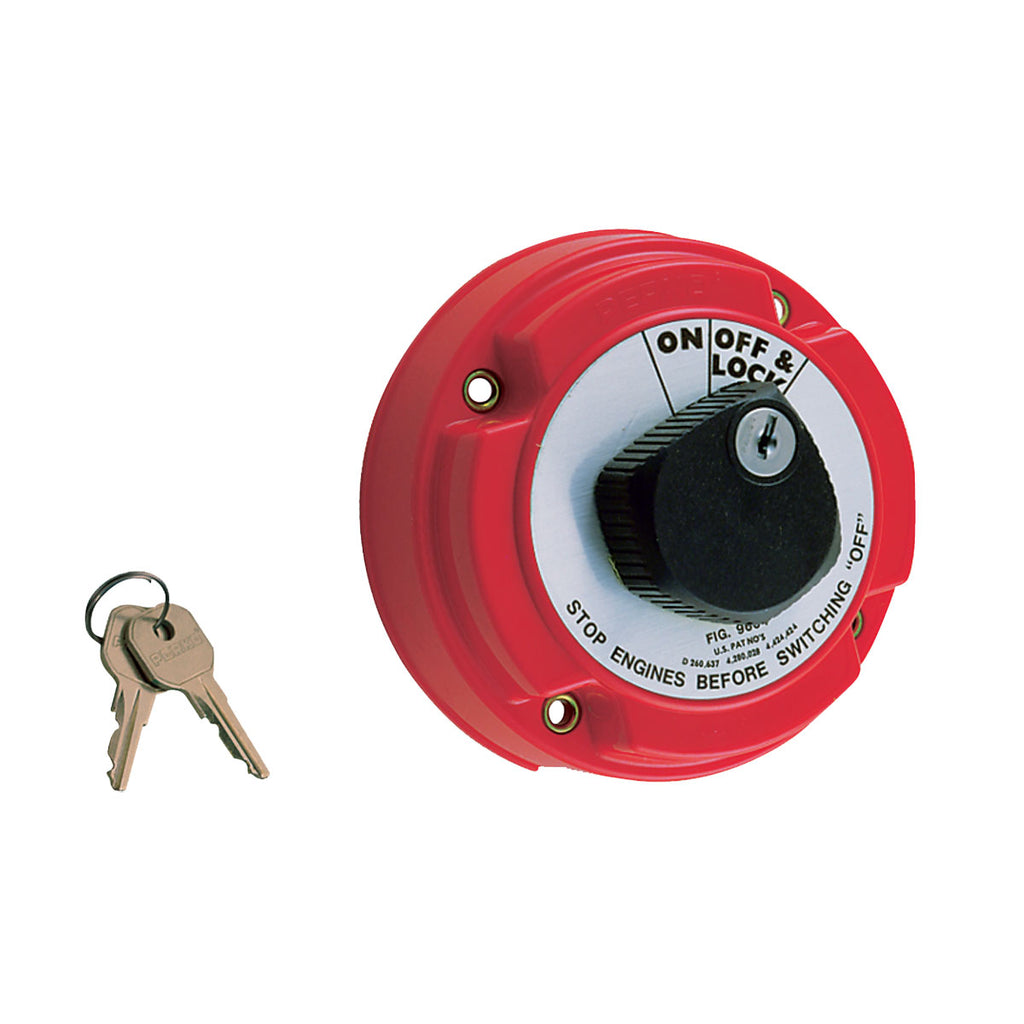

| 401102 | Yes | 134 | 67 | 5 r/h | 8 |
