Description

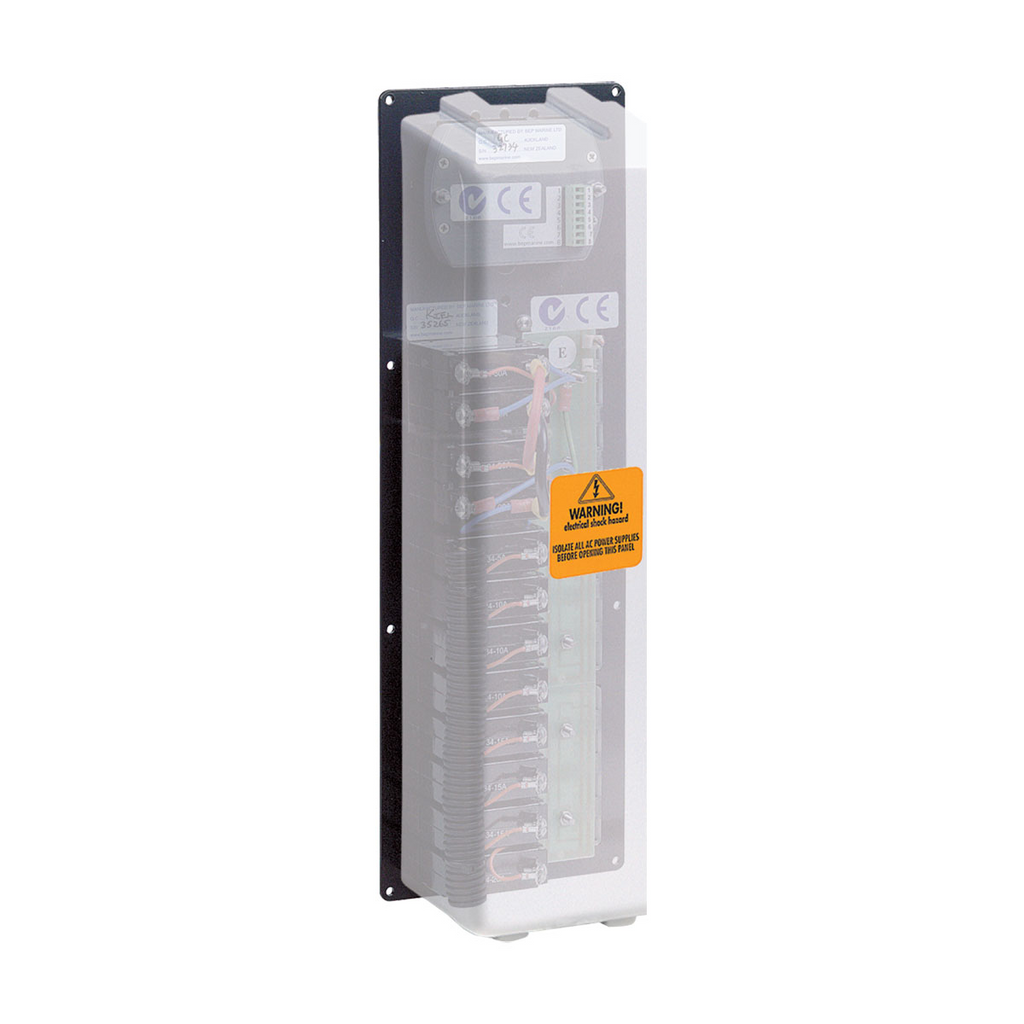

Designed to insulate the exposed terminals at the rear of BEP 'Contour AC' circuit breaker panels. Made from flame retardant PVC. Flange mounted to the rear of the same substrate as the panel.
Covers are supplied complete with hazard label. Available in two heights to suit panels with between 8 and 12 circuit breakers per column, with or without a meter.
| BLA CODE | COLUMNS | NO. OF BREAKERS | METER | WIDTH MM | HEIGHT MM | DEPTH MM |
|---|
| 113235 | 1 | 44173 | Yes | 127 | 380 | 90 |
| 113236 | 2 | 44173 | Yes | 239 | 380 | 90 |
| 113237 | 1 | 44173 | No | 127 | 285 | 90 |
| 113238 | 2 | 44173 | No | 139 | 285 | 90 |
