Description

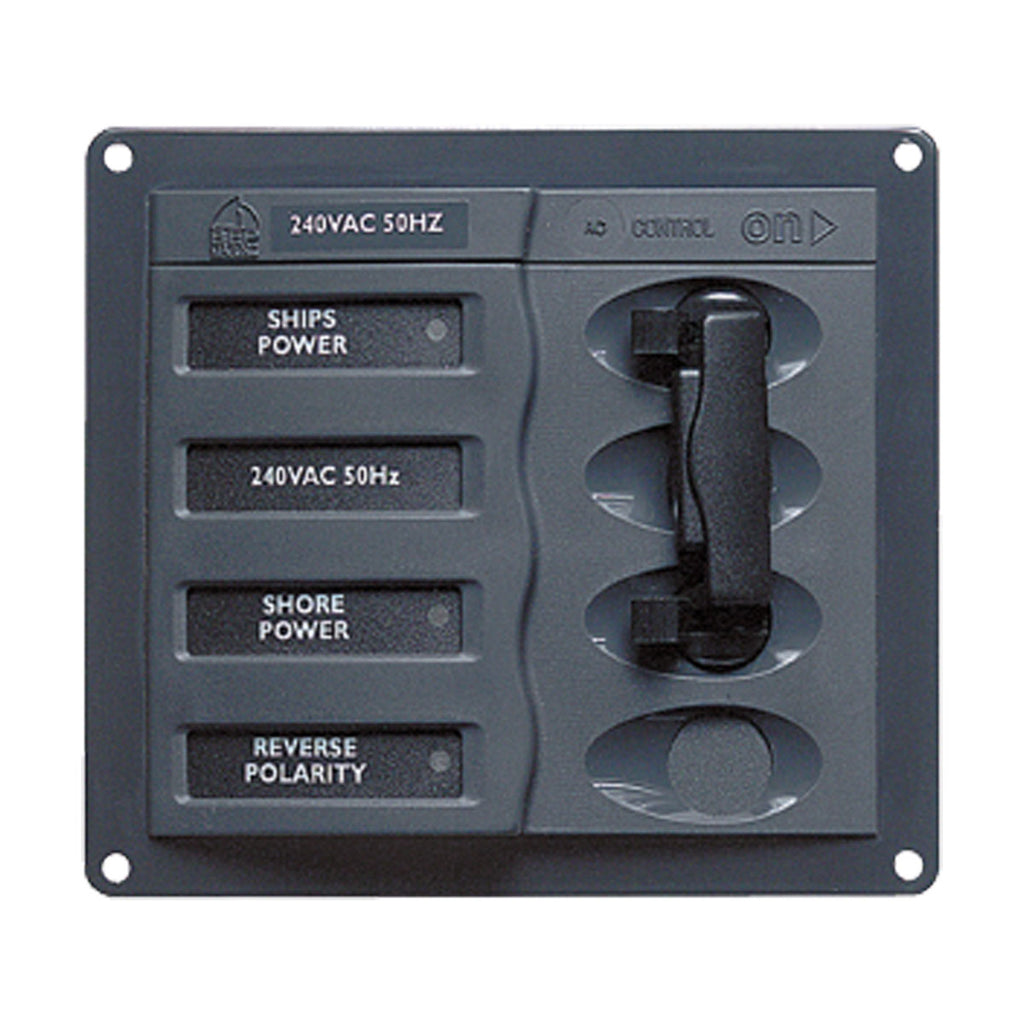

Contour style circuit breaker control panels with two double pole mains circuit breakers and change over control slide. Ship/shore transfer switch Features a slide gate that will only allow either shore power or ship power to be operational at any one time (113219 and 113221 excluded). For standard twin input systems such as one shore power and one genset input use 113218 or like. Supplied with either analogue or digital metering analogue meters for either AC volts or amps; digital meters switchable to show AC volts, amps and frequency.

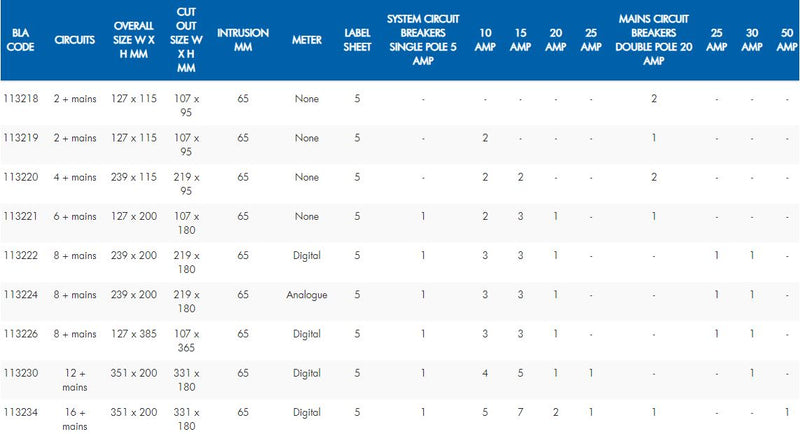

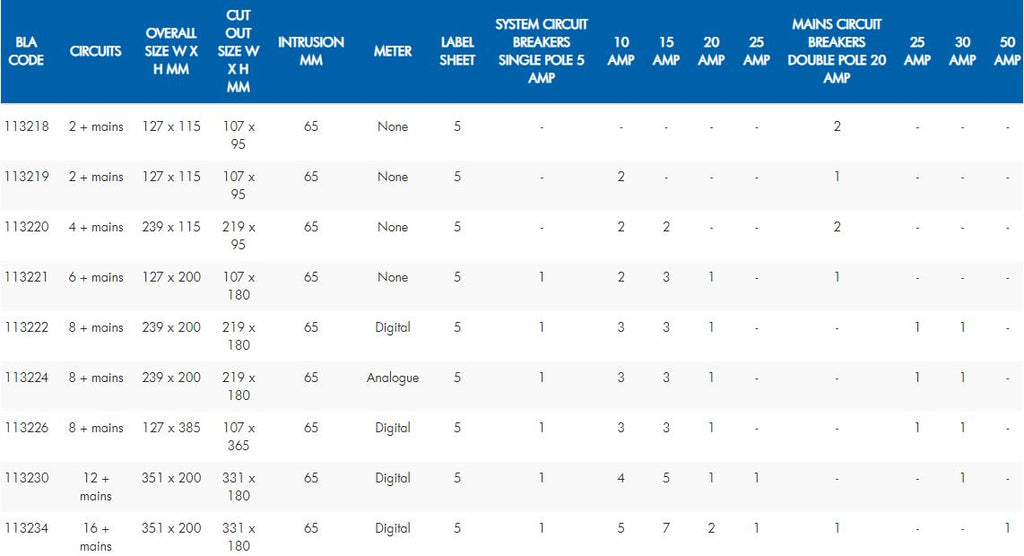

Features
Analogue volt meters, 2.5% of full scale accuracy
AC digital meters, high resolution 12mm high figures in LCD display, low power dissipation, 200 mV sensitivity, 1% accuracy
Durable black powder coated marine grade aluminium base panel
Stylish curved plastic facias covering all circuit breakers
Marine quality, magnetic, hydraulic, UL listed, trip free breakers
Backlit labels (set five supplied), refer page 157
Suitable sized negative busbar supplied, refer page 183
Red LED identification for circuits 'on'
Green LED back lighting for meters and labels
Two double pole mains circuit breakers with change over control slide for ship or shore power input (113219 and 113221 excluded)
Rated to 250v AC (110 volt option available)
Digital metered panels supplied with AC volt transducer module and 2 x current transformers
Reverse polarity indicator
With the flexibility of the 'Contour' four way plastic modules, BEP can build panels to custom requirements if requested.
12 volt supply is also required to power LEDs. On 24 volt vessels, the drop resistors below will be required to supply 12 volt to the LED circuit.
113461 Drop resistor BEP 8 way suits 113220 & 113221
113462 Drop resistor BEP 12 way suits 113224 & 113226
113463 Drop resistor BEP 16 way suits 113230
Accessories
113366 PCB Assembly 4 way AC
113367 PCB Assembly 8 way AC
113368 PCB Assembly 12 way AC
