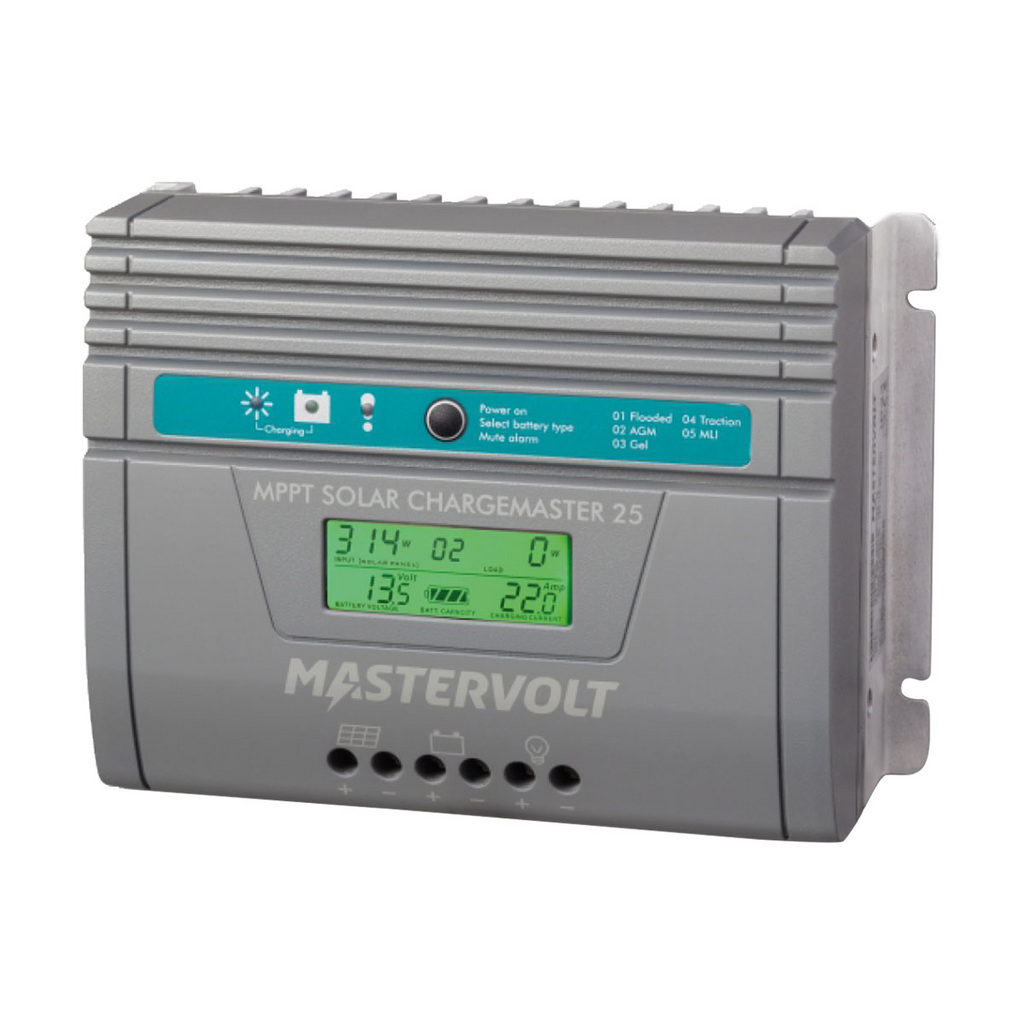

Mastervolt MPPT Solar Chargers

Name: Mastervolt MPPT Solar Chargers
Brand: BLA
SKU: BLA-37954-110783-BLA
Price: 307.91 AUD
Availability: InStock

Save $41.99

BLA

Variant: 110783

Variant

Price:

$307.91 $349.90

Quantity:

Share this product

Charges up to 30% faster with the same number of solar panels. Mastervolt solar charge regulators can be used flexibly to complement your energy system, or in places where no electricity is available.

Features
• Fewer cables, quick installation and lower losses
• Suitable for all solar panels, including the inexpensive 60-cell panels
• Suitable for humid environments (IP23)
• Large, clear LCD display
• Audible signal (SCM25 MPPT)
• Monitoring and control via MasterBus (SCM60 MPPT-MB)
• High efficiency your batteries are charged quickly
• Capacity for solar panel configurations of up to 3600 Wp
• Suitable for AGM, gel, wet and Mastervolt Lithium Ion batteries
• Battery temperature sensor for long lifespan
• Automatic 12 V/24 V/48 V detection SCM25 12/24 volt only
• Switchable output
• LCD display
• Fully protected against overtemperature, overload, high/low battery voltage, high/low PV voltage, short circuit and reverse polarity

Description	Mastervolt solar chargemaster scm-25	Mastervolt solar chargemaster scm-60
Features
Buzzer	Yes	No
Communication	n.a.	MasterBus
Lcd Display	Backlit LCD with PV power, load power, battery voltage, charge current, warnings, battery state of charge, battery setting	Backlit LCD with PV power, load power, battery voltage, charge current, warnings, battery state of charge, battery setting
Features
Protections	Over temperature, over load, high/low battery voltage, high/low PV voltage, short circuit, reverse polarity & HV transients	Over temperature, over load, high/low battery voltage, high/low PV voltage, short circuit, reverse polarity & HV transients
PV (Solar) Input
Nom. PV Current	18 A (at 40 °C)	50 A (at 40 °C)
PV Start Voltage (12/24 V)	15 V/27 V	n.a.
PV Start Voltage (12/24/48 V)	n.a.	15 V/27 V/51 V
Nom. PV Voltage (12 V)	15 - 66 V	13.2 - 115 V
Nom. PV Voltage (24 V)	27 - 66 V	26.4 - 115 V
Nom. PV Voltage (48 V)	n.a.	52.8 - 115 V
Max. PV Voltage At Tmin	75 V	145 V
Max. PV Power (12 V)	350 Wp	900 Wp
Max. PV Power (24 V)	700 Wp	1800 Wp
Max. PV Power (48 V)	n.a.	3600 Wp
Max. Efficiency	> 98%	> 98%
Static Mpp Efficiency	0.999	0.999
DC Output
System Voltage 12 V	12 V/24 V auto select	12 V/24 V/48 V auto select
Battery Type	AGM, gel, wet, Lithium Ion	AGM, gel, wet, Lithium Ion
Battery Temp. Sensor	Yes	Yes
Lithium Ion Protection	Yes, via Multipurpose Contact Output, art.no 77030500	Yes, via via Masterbus connection
Max. Charging Current	25 A (at 40 °C)	60 A (at 40 °C)
Switchable Output (Max. Current)	25 A	n.a.
Energy Consumption (Night)	5 mA	< 1 mA
General
Technology	MPPT	MPPT
Max. Cable Size	10 mmÇ Litz wire	35 mmÇ Litz wire
Dimensions, H x W x D mm	135 x 190 x 75	398 x 168 x 104
Weight	1.3 kg	5.5 kg
Temperature Range	-20 to 55 °C	-20 to 55 °C
Humidity	95% non-condensing	95% non-condensing
Protection Degree	IP23	IP23
Cooling	Passive	Passive
Grounding	(-) terminal	(-) terminal

Accessories
110595 USB Interface for solar Chargemaster
