Description
This Super Strong design is for sport fishing, large cruising and commercial vessels. This series has a completely flat blade design which reduces spray giving you a clean, dry ride. Boat lengths 7.3m to 15.8m. Blades are constructed of 7 gauge laser cut 304 stainless steel with 3/8″ diameter hinge pin. High impact corrosion proof upper and lower mounting brackets with mechanical gland cable seal, 5/16″ upper and 3/8″ lower stainless steel mounting bolts. 96mm sacrificial anodes installed.
Features
Blades 7 Gauge stainless steel
Finish Smooth
Switch Kit Sold separately
Made in Stuart, Florida U.S.A.

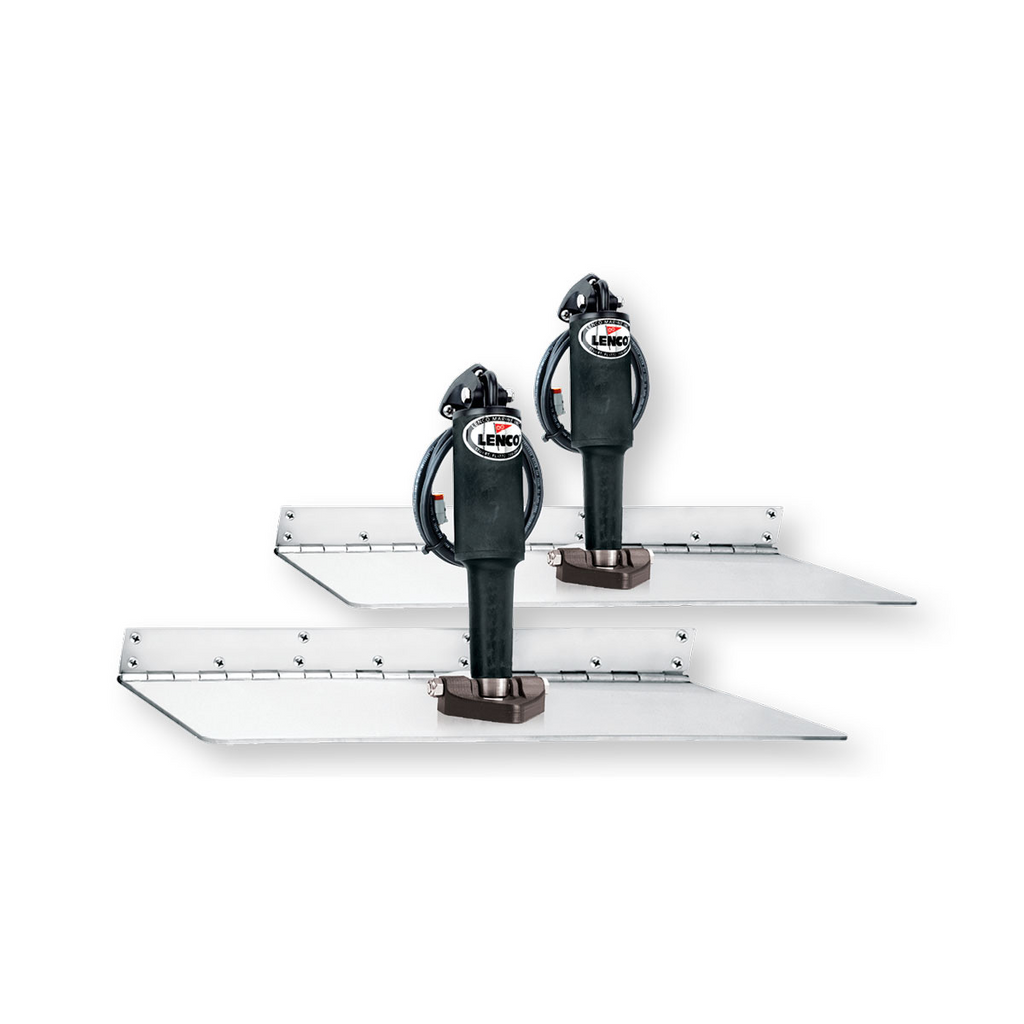

2x Actuators with 1.8m Harness
2x Blades with upper and lower mounting brackets
Please note Actuator extension harnesses not in kits, must be purchased separately (2 required) (312880-312888)
3 Year warranty
| BLA CODE | BLADE SIZE L X W IN | VOLTS | ACTUATOR SYSTEM | RECOMMENDED BOAT LENGTH M |
|---|
| 312480 | 12 x 18 | 12 | Single | 7.2 - 12 |
| 312482 | 12 x 24 | 12 | Single | 8.1 - 13.2 |
| 312484 | 12 x 30 | 12 | Single | 9 - 14.4 |
| 312485 | 12 x 30 | 24 | Single | 9 - 14.4 |
| 312486 | 12 x 36 | 12 | Single | 10 -15.6 |
