Description

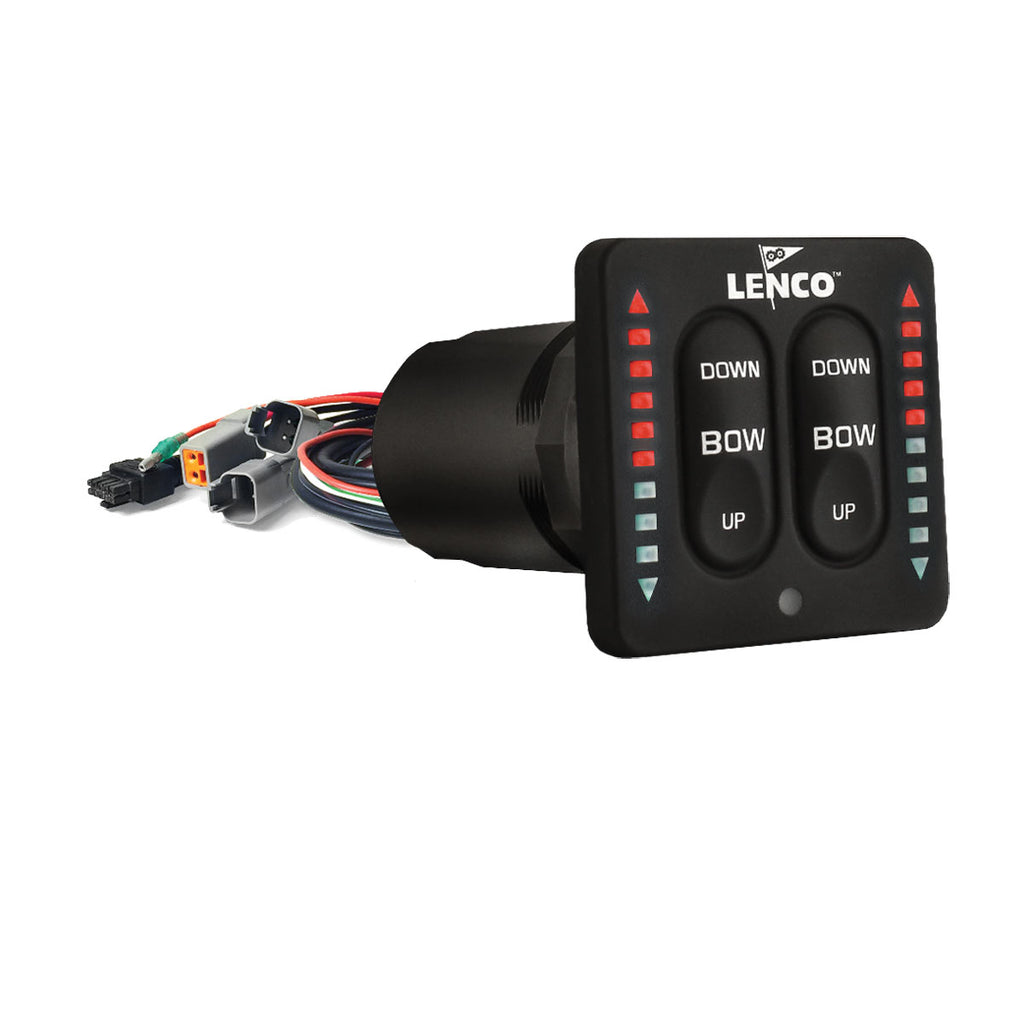

Complete your Lenco single actuator trim tab system with the latest, maintenance-free, LED Indicator (ALL-IN-ONE) integrated tactile switch kit design. This NEW switch technology improves accuracy and integrates the control box functionality into the key pad bezel.
Features
• Simple, quick, plug & play installation
• Instant response
• Built-in retractor
• Low profile key pad design
• Self-contained key pad with waterproof Plug & Play Deutsch connectors
• Wiring harness length 76.2 cm from the back of the switch bezel
• 0.9m Power pigtail
• 52mm Hole cut-out size, overall key pad size of 70mm x 70mm
• 103.6mm Clearance required from the back of the key pad’s mounting location
• 2 High-intensity LED Indicator displays show the exact position of your trim tabs at all times
• Photo eye for optimum viewing in all light conditions
• Backlit key pad for optimum viewing at night
• Self-check feature
• 3 Year warranty
