Description

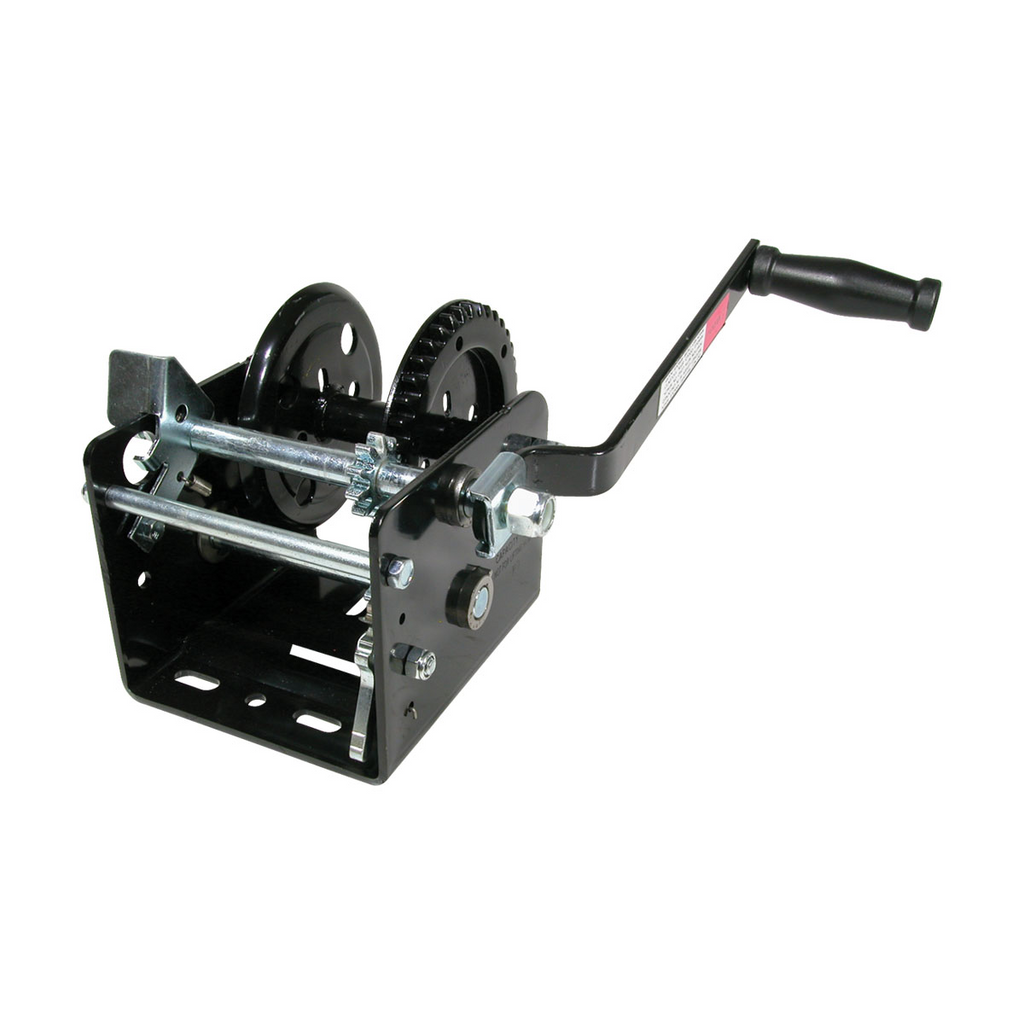

Two speed manual trailer winches manufactured from steel with an E.D. coating. Steel bushes on the main drive shafts.
Features include the ability to change speeds without removing the handle and a triple position pawl for forward, neutral and reverse gear operation. The 211648 incorporates a hand operated friction system that allows you to control the speed of the drum when in neutral. Handle bolts onto main shaft. Winch cables sold separately, refer to 212906.
| BLA CODE | GEAR RATIO | CAPACITY KG | BASE L X W MM | HEIGHT MM | HANDLE LENGTH MM | MOUNT HOLES MM |
|---|---|---|---|---|---|---|
| 211644 | 9.8:1/4:1 | 900 | 165 x 146 | 161 | 285 | 10 |
| 211648 | 12:1/5:1 | 1150 | 179 x 146 | 183 | 285 | 10 |
