Description

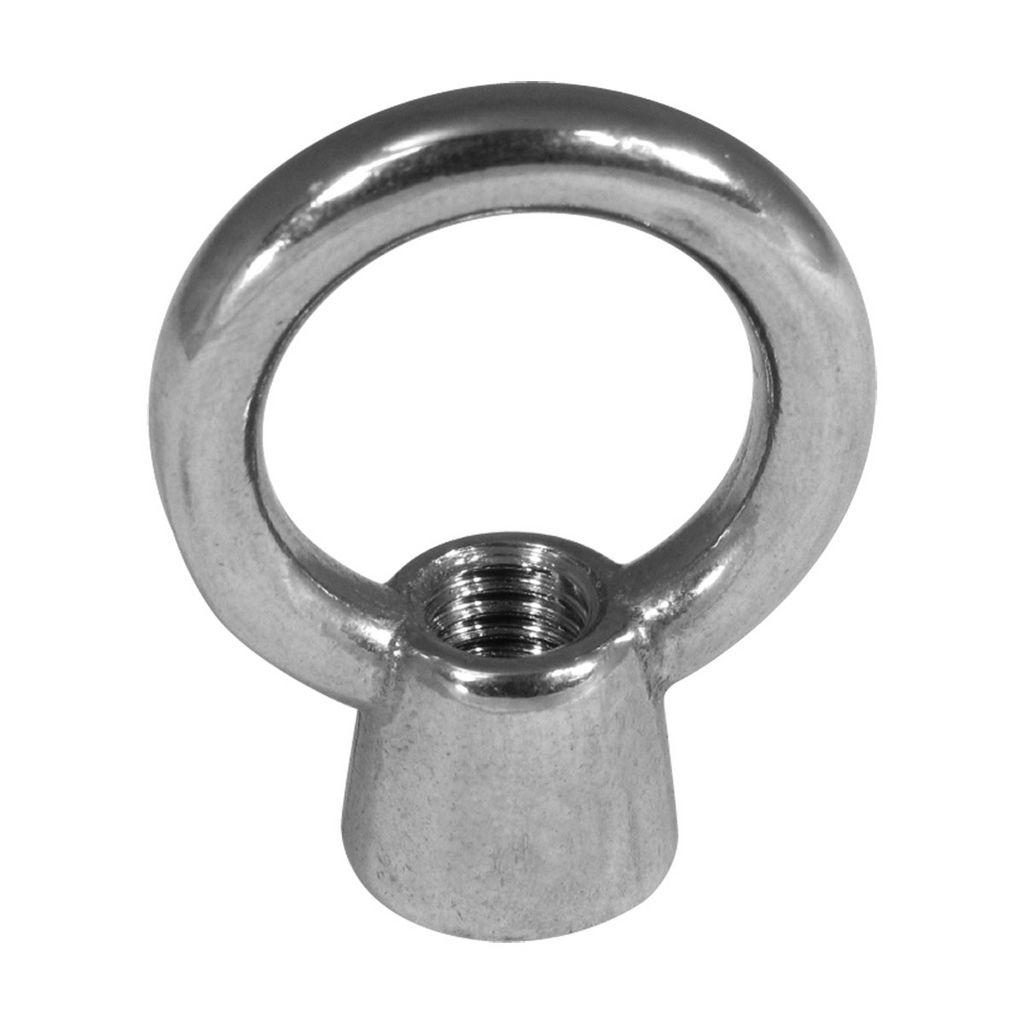

Cast 316 grade stainless steel eye nut (metric thread).
| BLA CODE | A MM | B MM | C MM | THREAD | BREAK LOAD KG |
|---|
| 165382 | 31 | 26 | 16 | M6 | 1100 |
| 165384 | 39 | 31 | 20 | M8 | 1300 |
| 165386 | 48 | 41 | 25 | M10 | 2600 |
| 165388 | 60 | 50 | 30 | M12 | 3400 |
| 165392 | 70 | 59 | 34 | M16 | 8000 |
Cast 316 grade stainless steel eye nut (metric thread).
| BLA CODE | A MM | B MM | C MM | THREAD | BREAK LOAD KG |
|---|
| 165382 | 31 | 26 | 16 | M6 | 1100 |
| 165384 | 39 | 31 | 20 | M8 | 1300 |
| 165386 | 48 | 41 | 25 | M10 | 2600 |
| 165388 | 60 | 50 | 30 | M12 | 3400 |
| 165392 | 70 | 59 | 34 | M16 | 8000 |
