Description

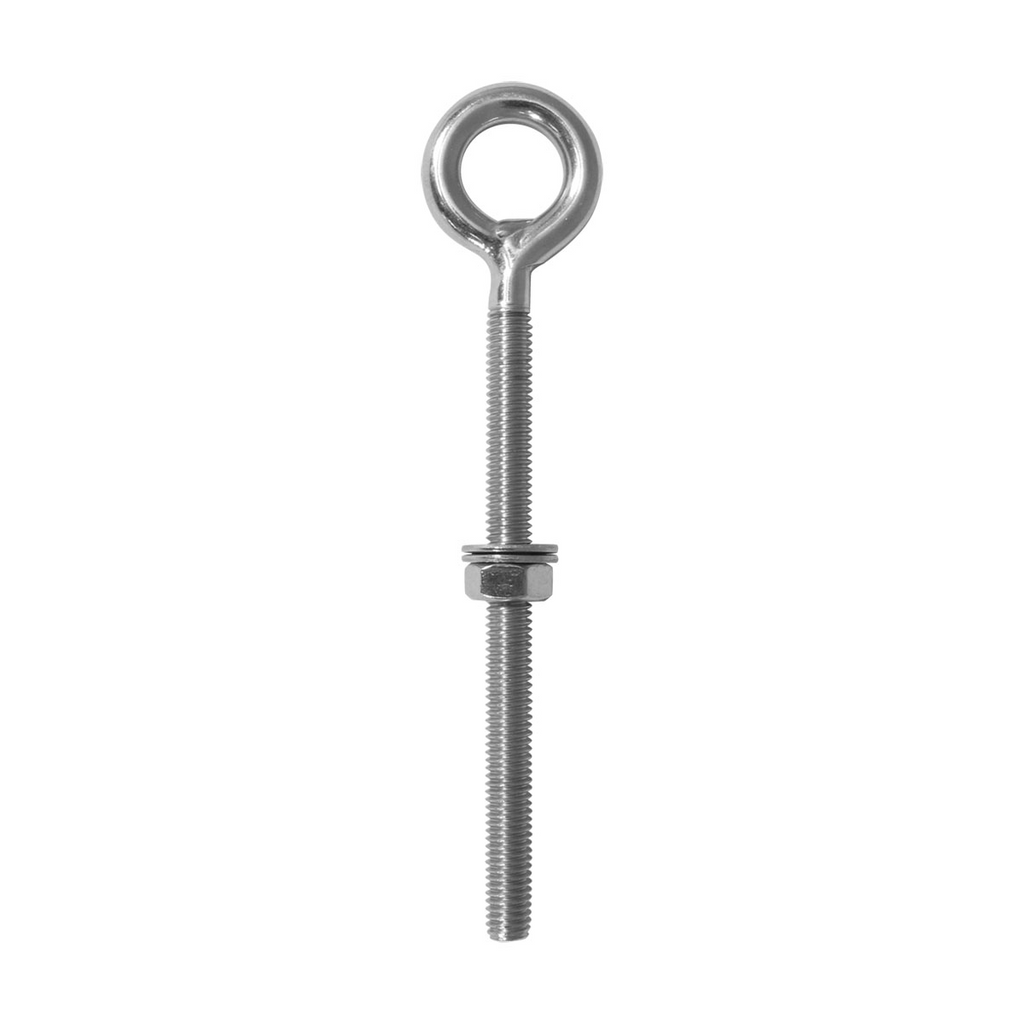

304 grade stainless steel eye bolt with rolled, welded eye. One piece construction, supplied with nut and two washers.
BLA CODE | A THREAD | B MM | C MM | D MM | BREAK LOAD KG |
---|
165062 | M6 | 70 | 45 | 13 | 1000 |
165064 | M6 | 90 | 65 | 13 | 1000 |
165066 | M6 | 110 | 85 | 13 | 1000 |
165068 | M8 | 118 | 85 | 17 | 1800 |
165070 | M8 | 137 | 105 | 17 | 1800 |
165071 | M10 | 130 | 90 | 21 | 2400 |
165072 | M10 | 150 | 110 | 21 | 2400 |
165074 | M12 | 135 | 85 | 25 | 3500 |
165075 | M12 | 175 | 125 | 25 | 3500 |
