Description

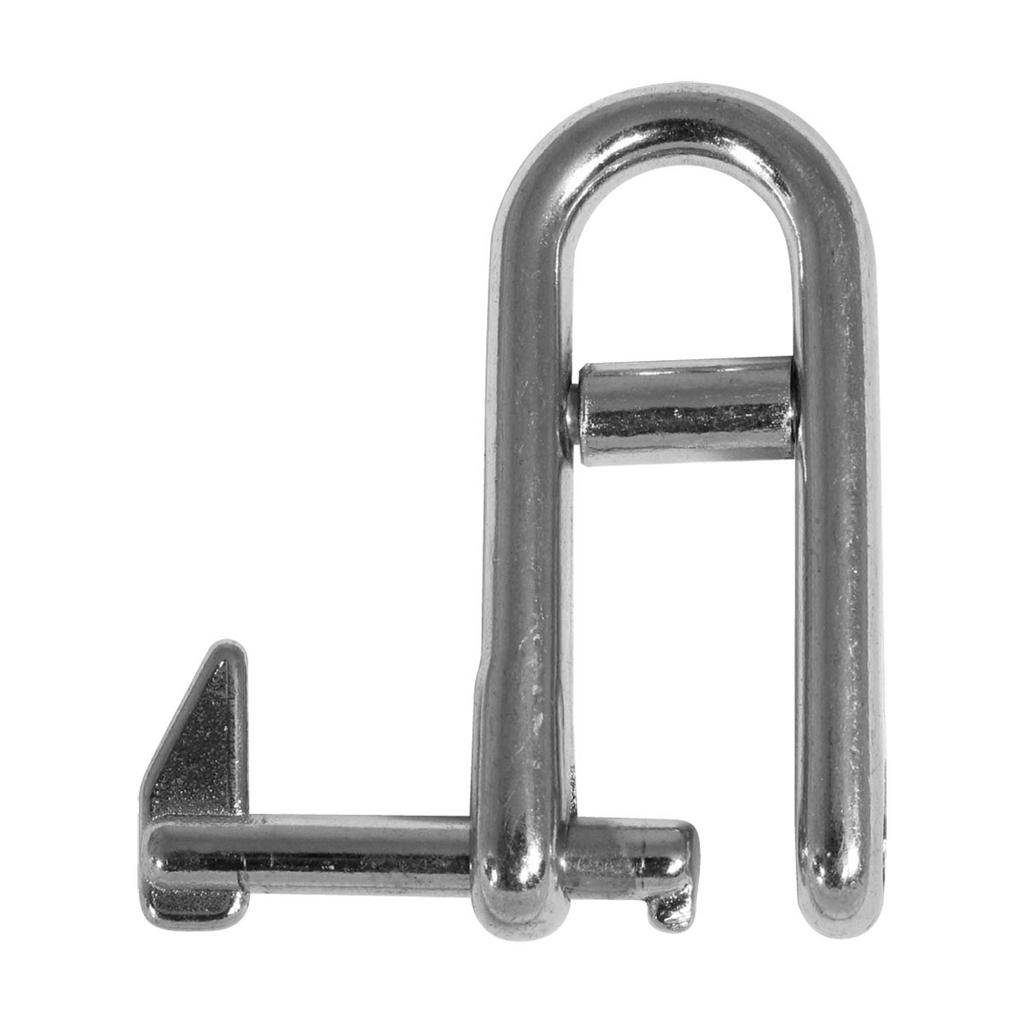

316 grade stainless steel captive pin shackles with quick release locking mechanism. Security bar permanently secures shackle to halyard.
BLA CODE | PIN. DIA MM | A MM | B MM | C MM | BREAKING LOAD KG |
---|
161140 | 5 | 38 | 12 | 13 | 1200 |
161142 | 6 | 43 | 15 | 15 | 1600 |
161144 | 8 | 60 | 21 | 20 | 2800 |
