Description

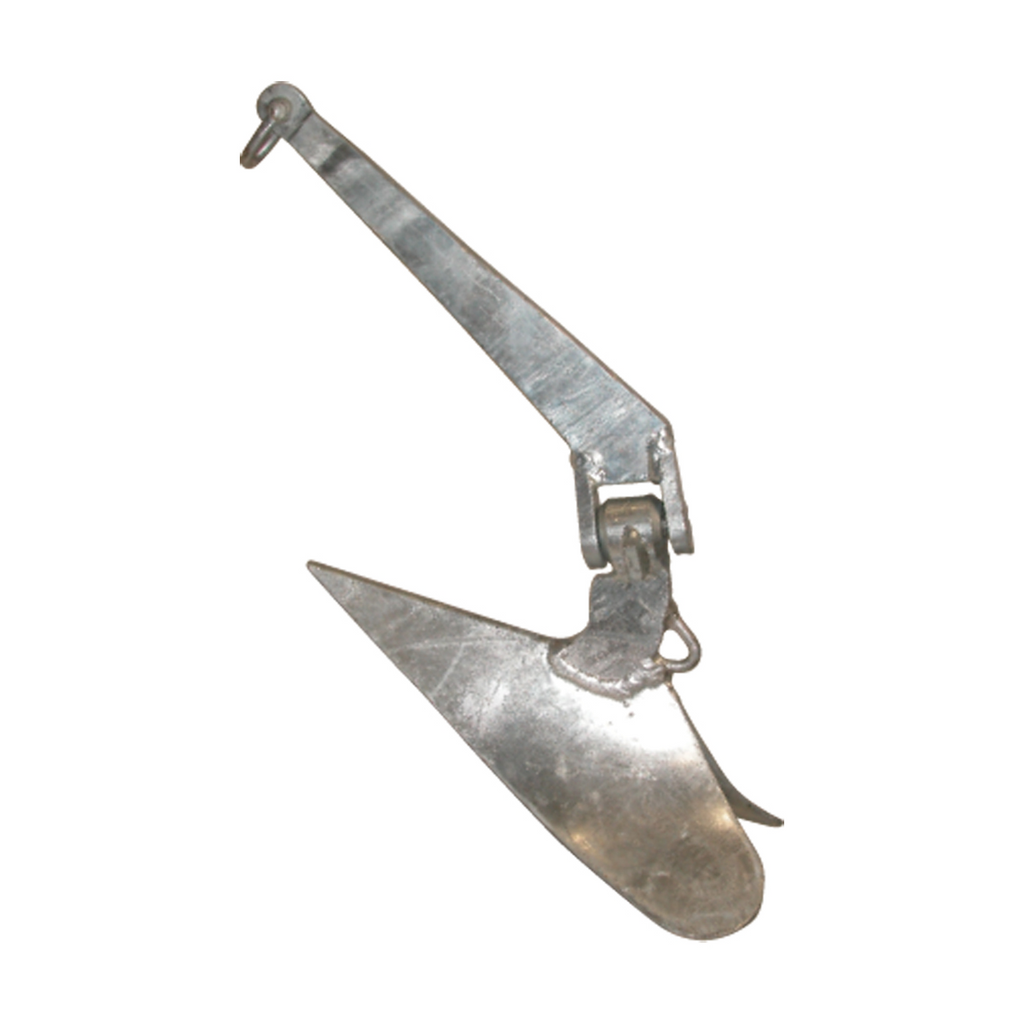

Ideal for sand and mud. Provides safe and sure anchoring for heavier craft. Fitted with retrieval eye for ease of removal if snagged. Heavy duty hot dipped galvanised finish with lead filled tip. Anchor size refers to approximate weight in pounds.
| BLA CODE | SIZE | APPROX. BOAT LENGTH M | WEIGHT APPROX. KG | A MM | B MM | C MM | D MM |
|---|
| 146152 | 10P |
5 |
4.5 | 200 | 550 | 200 | 270 |
| 146154 | 15P | 7 | 6.8 | 250 | 580 | 255 | 280 |
| 146156 | 20P | 8 | 9 | 280 | 700 | 270 | 350 |
| 146158 | 27P | 9 | 12.3 | 325 | 760 | 290 | 380 |
| 146160 | 35P | 11 | 15.9 | 375 | 790 | 330 | 400 |
| 146162 | 45P | 13 | 20.4 | 395 | 850 | 335 | 440 |
| 146164 | 60P | 15 | 27.2 | 450 | 940 | 375 | 470 |
| 146166 | 80P | 16 | 36.3 | 490 | 1060 | 400 | 520 |
| 146168 | 100P | 17 | 45.4 | 490 | 1120 | 400 | 570 |
