Specifications

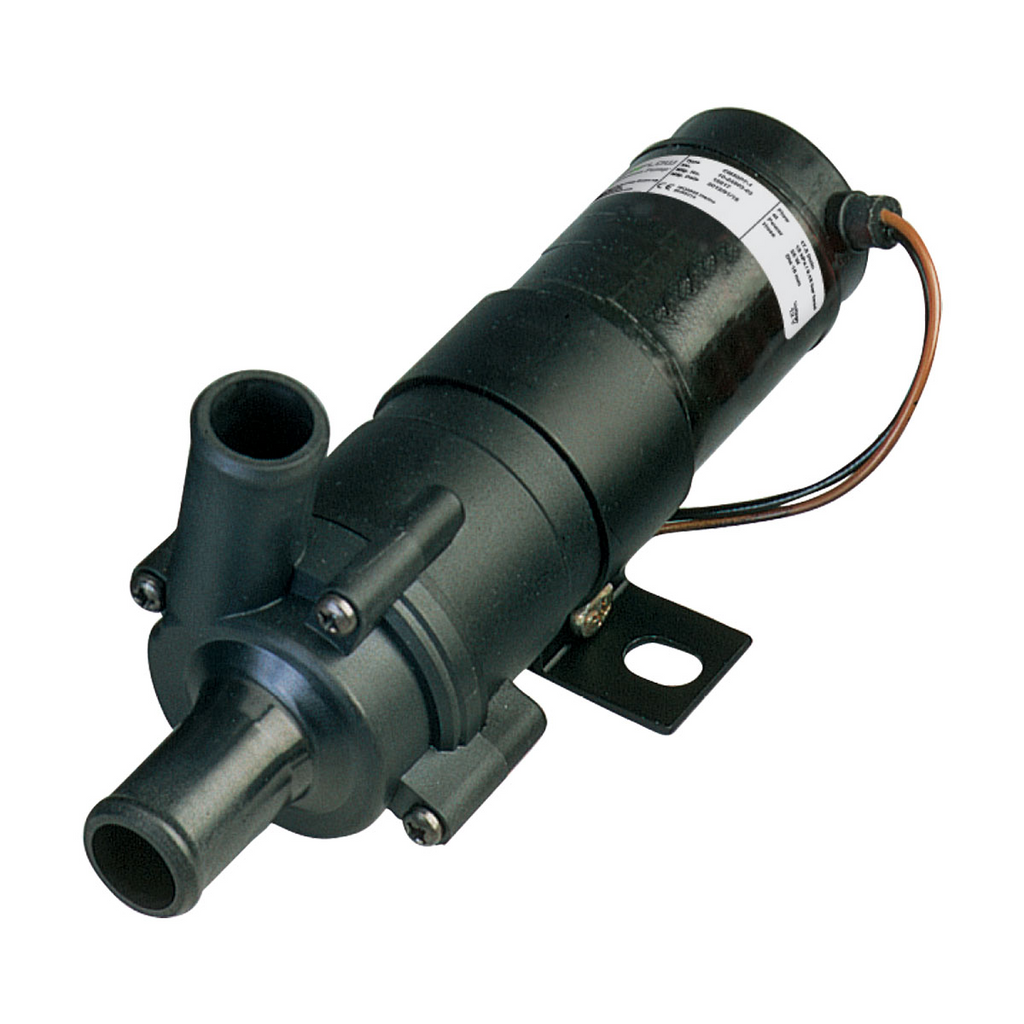

• Pump body PPA thermoplastic
• Impeller PPS thermoplastic
• O-ring EPDM
• Shaft Stainless steel
• Magnet housing PSU
• Motor 12/24V DC enclosed (as per IP67) permanent magnet, ball bearing mounted motor, designed for continuous operation
• Dimensions 177 mm (L) x 68 mm (W) x 85 mm (H)
• Weight 0.6 kg
• Liquid water/glycol mixture; max. 60% glycol, fresh and saltwater
• Liquid temp Min -40°C Max. +100°C Weight 3.0 kg
• Hose connection Ø 16 mm (5/8″) or 20 mm (3/4″) hose
N.B. CM30P7-1 with Ø 16 mm (5/8″) available on request
