Description

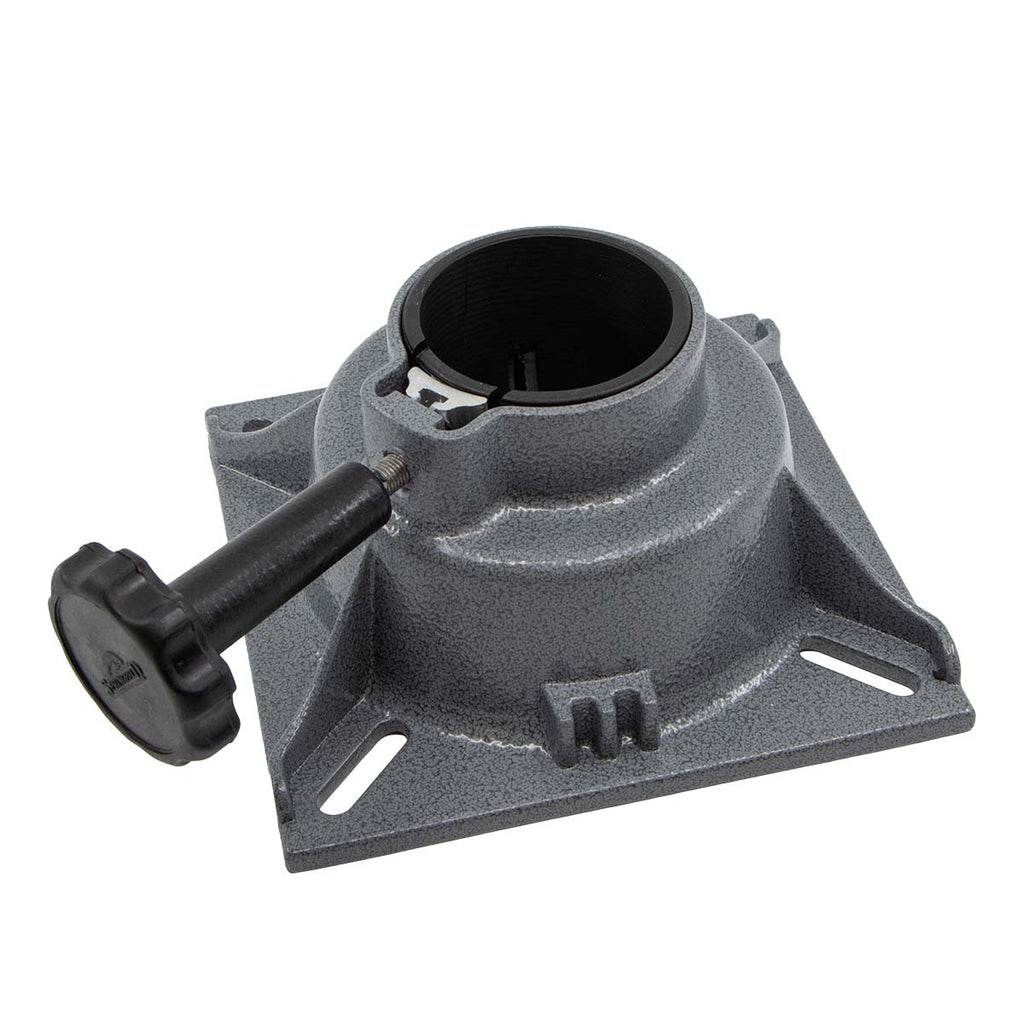

Grey hammer tone finish, cast alloy, friction locking swivel pedestal tops to suit either 60mm or 73mm outside diameter tube. Moulded plastic cup insert between pedestal top and post for smooth swivel action. Screw adjustable friction control locks swivel at any position of rotation.
| BLA CODE | POST DIA. MM | WIDTH MM | DEPTH MM | HEIGHT MM | MOUNT HOLES MM |
|---|
| 183022 | 73 | 170 | 170 | 85 | 8 r/h |
| 183023 | 73 | 170 | 170 | 85 | 8 r/h |
| 183178 | 60 | 170 | 170 | 85 | 8 r/h |
| 183179 | 60 | 170 | 170 | 85 | 8 r/h |
