Description

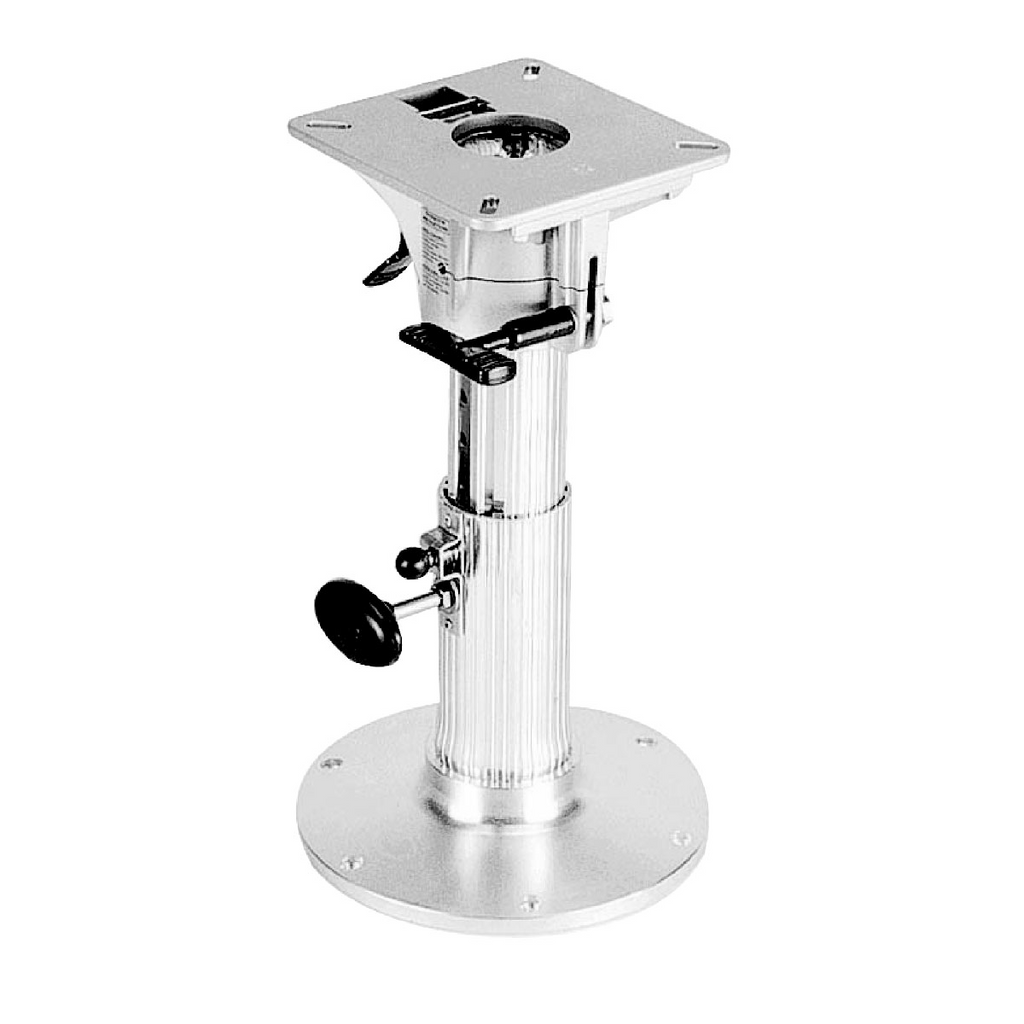

Adjustable height anodised aluminium seat pedestal with 25mm pin locked height adjustments. Pedestal top can be rotated 360Ëš and locked in place.
Features
Pin secures base at specific height in 25mm increments
Stainless steel lock pin locates securing hole easily
Positive lock pedestal top, rotates 360º. Fluted bearing cup fits onto ribbed stanchion profile
Anodised aluminium tubing
Wobble-Free Design
U.S. Patents D376, 841 & 5, 385, 323
BLA CODE | HEIGHT MM | BASE DIA. MM | BASE MOUNT HOLES MM |
---|
182150 | 457-584 | 230 | 17 |
182152 | 305-432 | 230 | 17 |
