Description

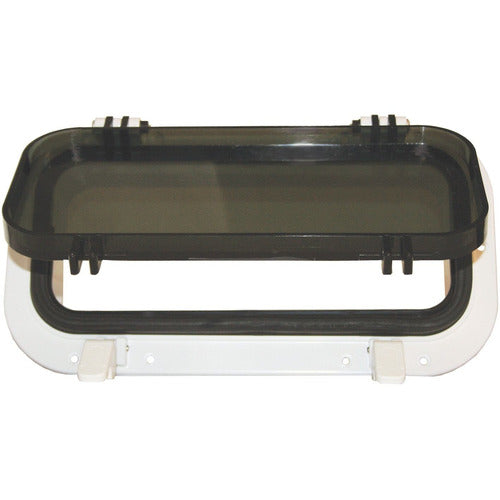

Beckson "rain drain" opening ports are made in the U.S.A from the fi nest marine grade plastics available today. All metal parts are stainless steel. The lens is made from tough Lexan material.

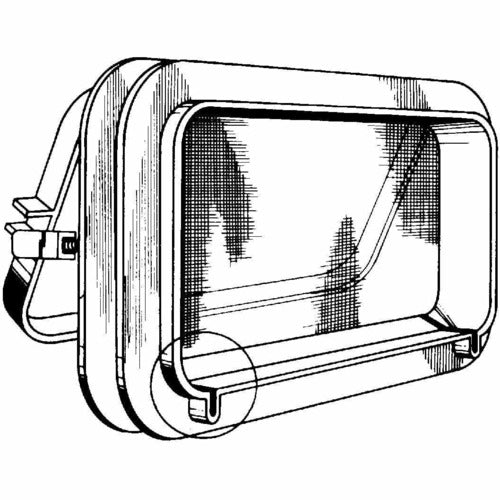

- Self draining style - with moulded drain on exterior housing.
- Smoked (tinted) lexan lense standard. Clear lense optional.
- Unique, simple cam lock opening and closing mechanism
- Exterior is made of white UV resistant marine grade plastic
- Rim sits tightly against the gasket for a waterproof seal
- Unique hinge allows the window to hold open at any angle
- All metal parts are made of stainless steel
- Supplied complete with gasket, insect screen and trim ring
- All ports have a 50mm (2") spigot which suits a maximum hull thickness of 45mm (1 3/4"). Can be cut down to size.
| SKU | Size Name | Cut-out Size | Overall Size |
| RWB2760 | 3 x 10 | 89 x 264mm | 140 x 314mm |
| RWB2762 | 4 x 10 | 89 x 264mm | 172 x 324mm |
| RWB2764 | 5 x 12 | 140 x 318mm | 197 x 372mm |
| RWB2766 | 4 x 14 | 114 x 365mm | 172 x 425mm |
| RWB2767 | 7 x 14 | 190 x 365mm | 248 x 425mm |
